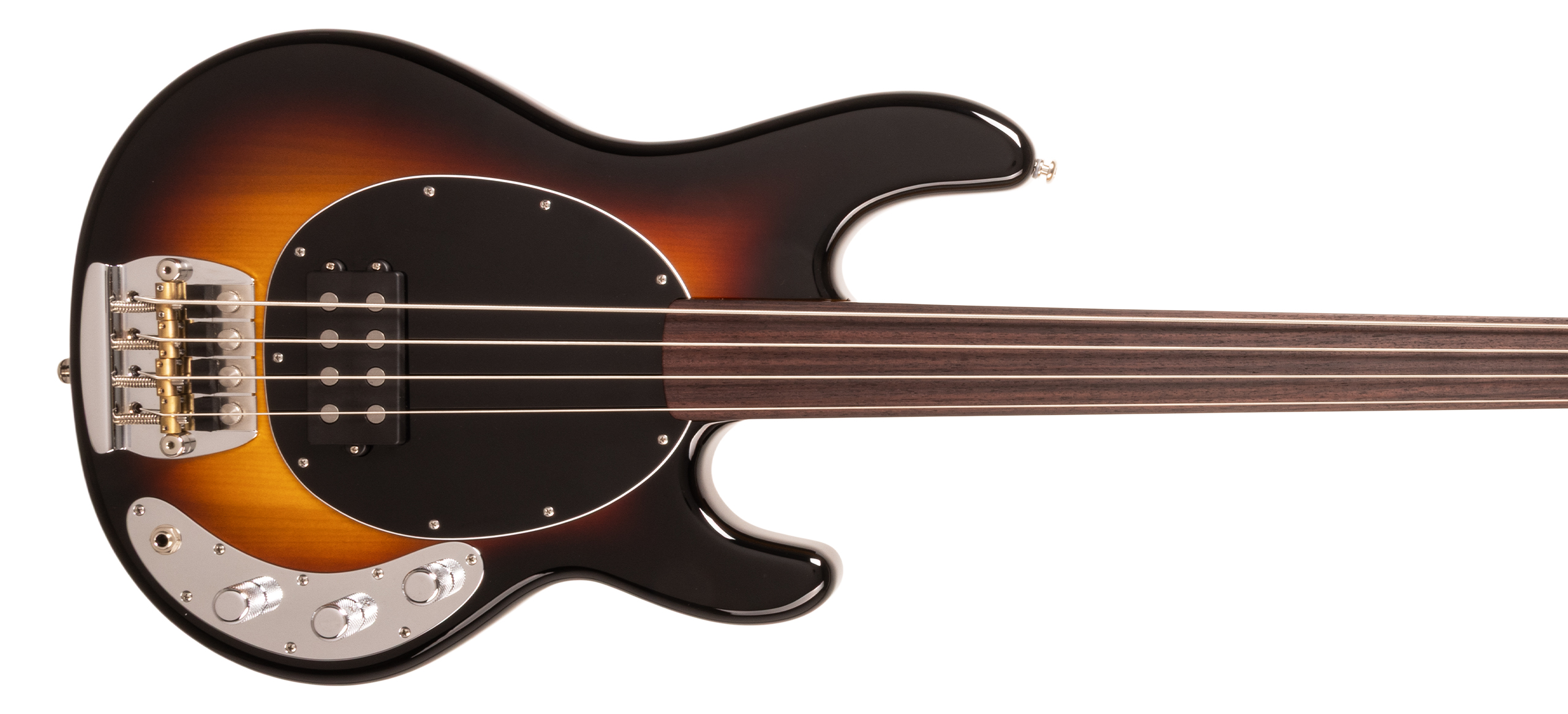

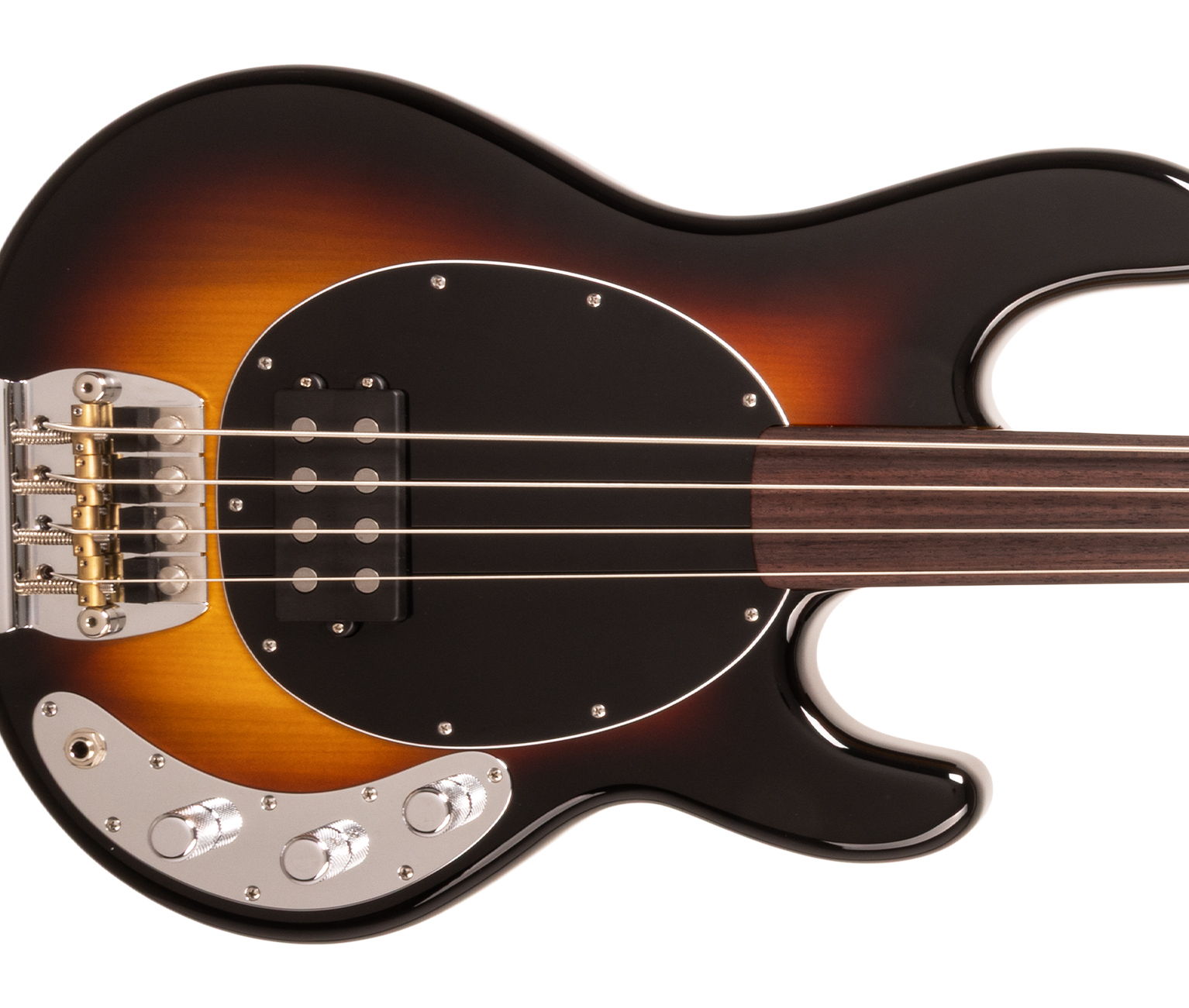

The Pino Palladino Signature StingRay Bass captures the iconic tone and feel of one of the most influential bass players of all time. Inspired by Pino's original 1979 fretless StingRay, this signature model is available in both fretted and fretless versions, each designed to deliver his unmistakable tone and playability. It features a poplar body finished in '79 Burst, a dark-tinted maple neck with a thin rosewood fingerboard, and a unique asymmetrical neck carve that mirrors the shape of Pino’s original bass. The custom pickup, built to a late 70s recipe with shorter pole pieces, pairs perfectly with the preamp, voiced to replicate the warmth and character of Pino’s aged circuit. Brass saddles, a GraphTech NuBone nut, and artist series neck plates. The fretted model is strung with Pino Signature Smoothie Flats for a rich, thumpy tone, while the fretless version features custom gauge Ernie Ball Slinky Nickel Wound strings for smooth, expressive slides. Each bass comes in a Mono Case for durability and protection.
79 Burst - Fretted
79 Burst - Fretless
The 9-volt 2-eq preamp is a hand-soldered circuit board with period correct components and CTS Pots (500K treble pot rather than 1 meg, just like Pino's) voiced to replicate the tone of Pino's aged preamp

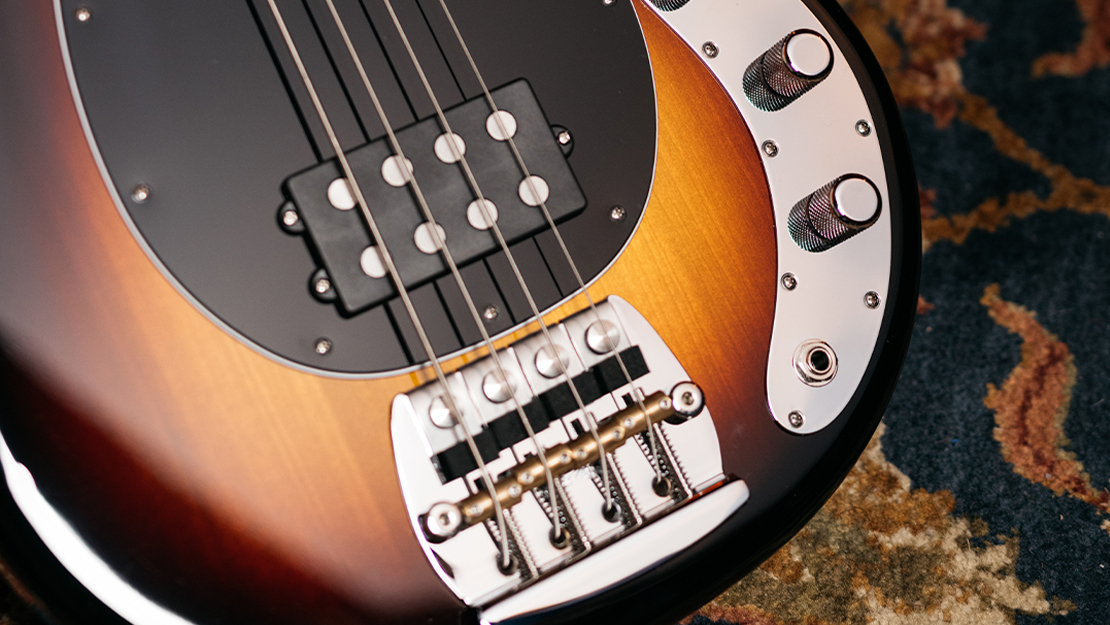

Custom humbucking pickup with 5/8th” alnico 5 magnets wound with original 42 gauge wire.

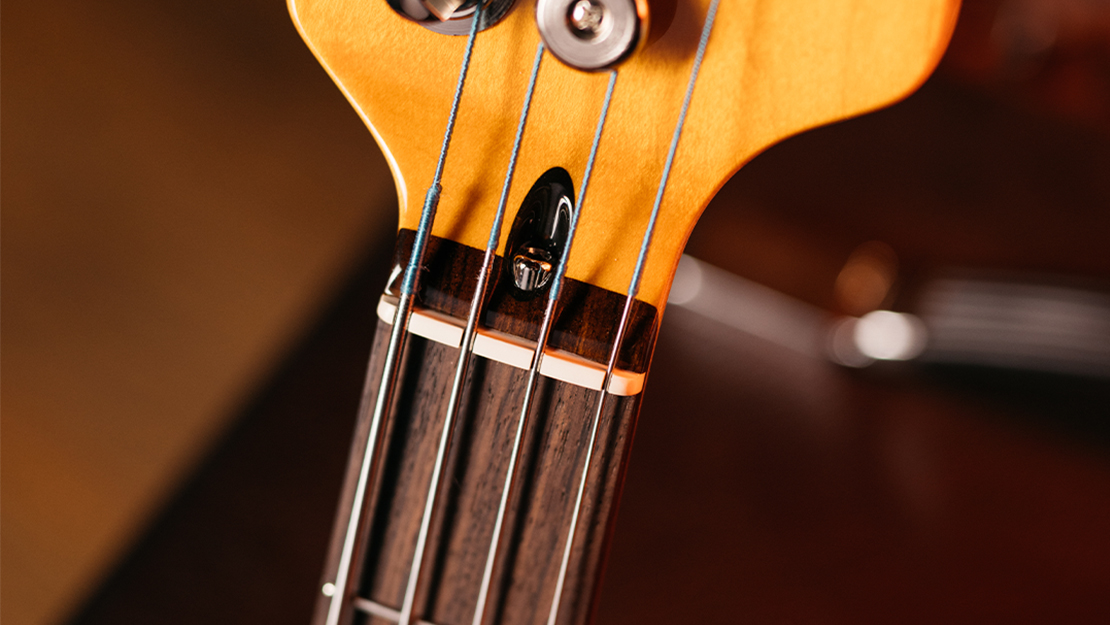

The original pre-EB StingRay bullet truss rod adjustment ensures proper neck action.

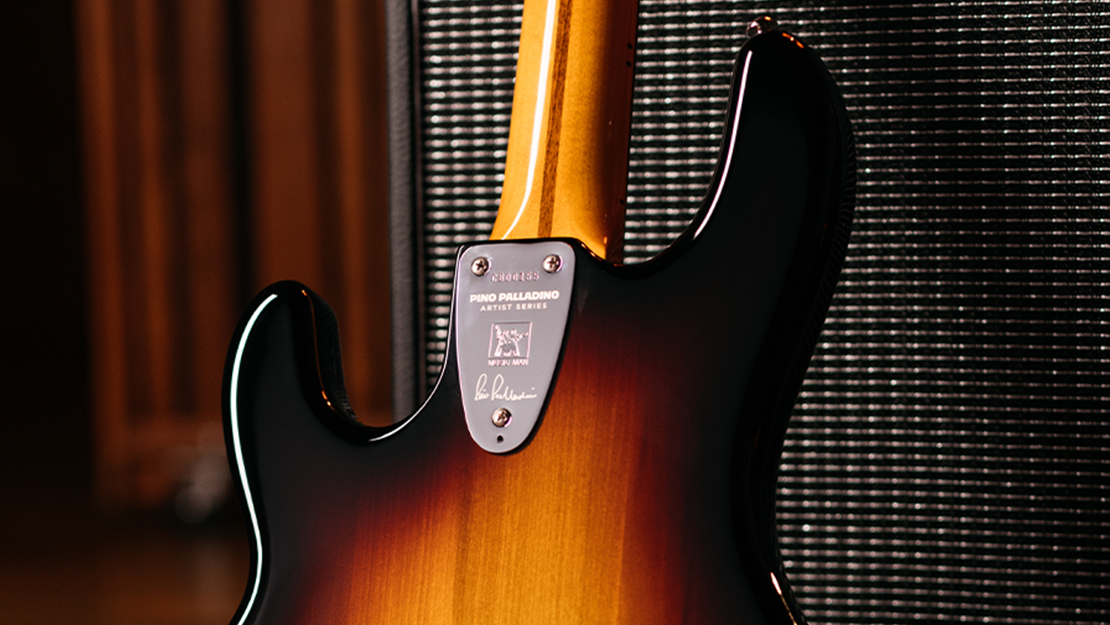

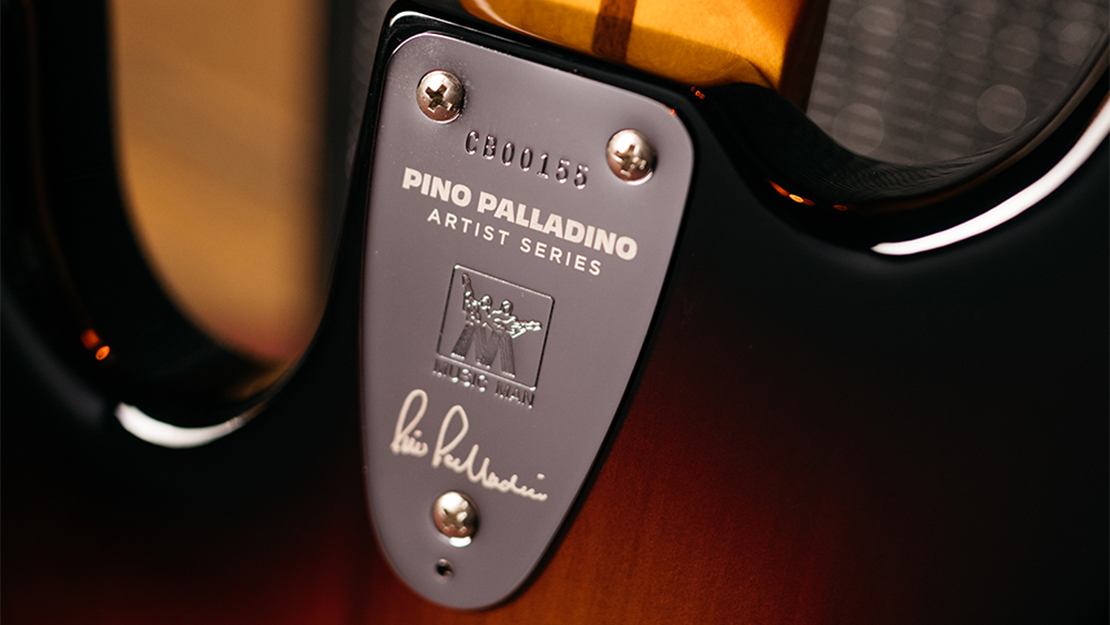

The Pino Palladino 3-bolt artist series chrome-plated neck plate includes a micro-tilt adjustment, which allows for neck angle adjustments without the need for shims. Firm neck and neck pocket tolerances ensure a tight fit with no shifting.
The back profile toward the bass side of the neck has a strong “V” shape. It softens to a rounder “C” profile near the treble side of the neck for a more accurate custom playing experience under the fingertips.

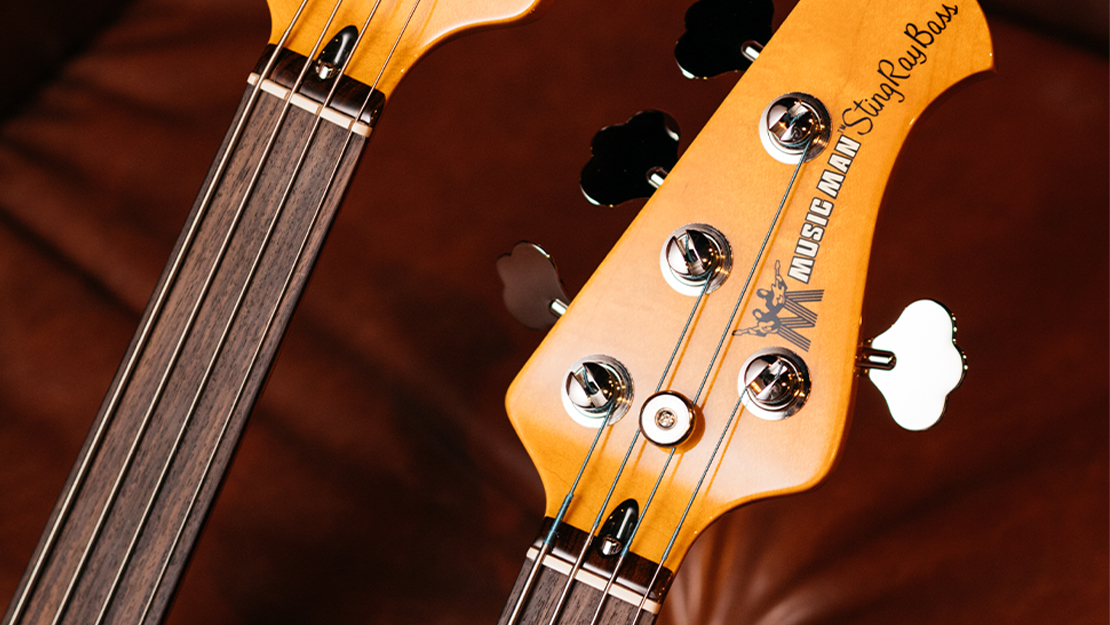

1.686" wide, the meticulously hand-shaped Graphtec Nubone nut duplicates Pino’s modification to enhance tone, volume, and harmonics.
| Especificaciones | Pino Palladino StingRay |
|---|---|
| Modelo | Pino Palladino StingRay |
| Tipo de madera del cuerpo | Poplar |
| Tipo de acabado del cuerpo | High Gloss Polyester |
| Colores del cuerpo | 79 Burst |
| Puente | Pre-EB Geometry Music Man® Chrome Plated, Steel Bridge Plate with Brass Saddles and Stainless Steel Spring Mutes |
| Pickguard | 3 ply Black/White/Black |
| Escala de longitud | 34" |
| Radio del cuello | 7.5" |
| Trastes | Nickel (Frets) - Unlined (Fretless) |
| Ancho de cuello | 1.686" at Nut; 2.458" at Heel |
| Madera del cuello | Maple |
| Diapasón | Rosewood |
| Indicador de los trastes | White Dot (Frets) - N/A (Fretless) |
| Acabado del cuello | Polyester |
| Color del cuello | Dark Orange Tint |
| Afinador | Schaller Bass |
| Barra de refuerzo | Traditional Bullet Nut at Headstock, Walnut Skunk Stripe on back of neck |
| Unión del cuello | 3-Bolt, Pino Palladino Signature Neck Plate |
| Controles | 2-band active preamp, 25k Volume; 500k Treble and 100k Bass |
| Pastillas | Late 70's voiced Music Man humbucker with pole pieces that sit flush |
| Cuerdas | 36w, 55w, 65w, 90w Custom Gauge Ernie Ball Nickelwound (Fretless) - 38w-54w-68w-98w Extra Light Pino Palladino Smoothie Flats (Fretted) |
id => 129
iid => 129
enabled => 1
header_1 =>
header_2 =>
wiring_image => 0
created_at => 2025-07-03 10:12:18
updated_at => 2025-07-03 10:12:18
| Especificaciones | Pino Palladino StingRay | |
|---|---|---|
| Model | Pino Palladino StingRay | |
| Order | 0 | |
| Size | ||
| Body Wood | Poplar | |
| Body Finish | High Gloss Polyester | |
| Body Colors | 79 Burst | |
| Body Bindings | ||
| Bridge | Pre-EB Geometry Music Man® Chrome Plated, Steel Bridge Plate with Brass Saddles and Stainless Steel Spring Mutes | |
| Pickguard | 3 ply Black/White/Black | |
| Scale Length | 34" | |
| Neck Radius | 7.5" | |
| Headstock Size | ||
| Frets | Nickel (Frets) - Unlined (Fretless) | |
| Neck Width | 1.686" at Nut; 2.458" at Heel | |
| Neck Wood | Maple | |
| Fingerboard | Rosewood | |
| Fret Markers | White Dot (Frets) - N/A (Fretless) | |
| Neck Finish | Polyester | |
| Neck Colors | Dark Orange Tint | |
| Neck Binding | ||
| Tuning Machines | Schaller Bass | |
| Truss Rod | Traditional Bullet Nut at Headstock, Walnut Skunk Stripe on back of neck | |
| Neck Attachment | 3-Bolt, Pino Palladino Signature Neck Plate | |
| Electronic Shielding | ||
| Controls | 2-band active preamp, 25k Volume; 500k Treble and 100k Bass | |
| Switching | ||
| Pickups | Late 70's voiced Music Man humbucker with pole pieces that sit flush | |
| Left Handed | ||
| Strings | 36w, 55w, 65w, 90w Custom Gauge Ernie Ball Nickelwound (Fretless) - 38w-54w-68w-98w Extra Light Pino Palladino Smoothie Flats (Fretted) |
