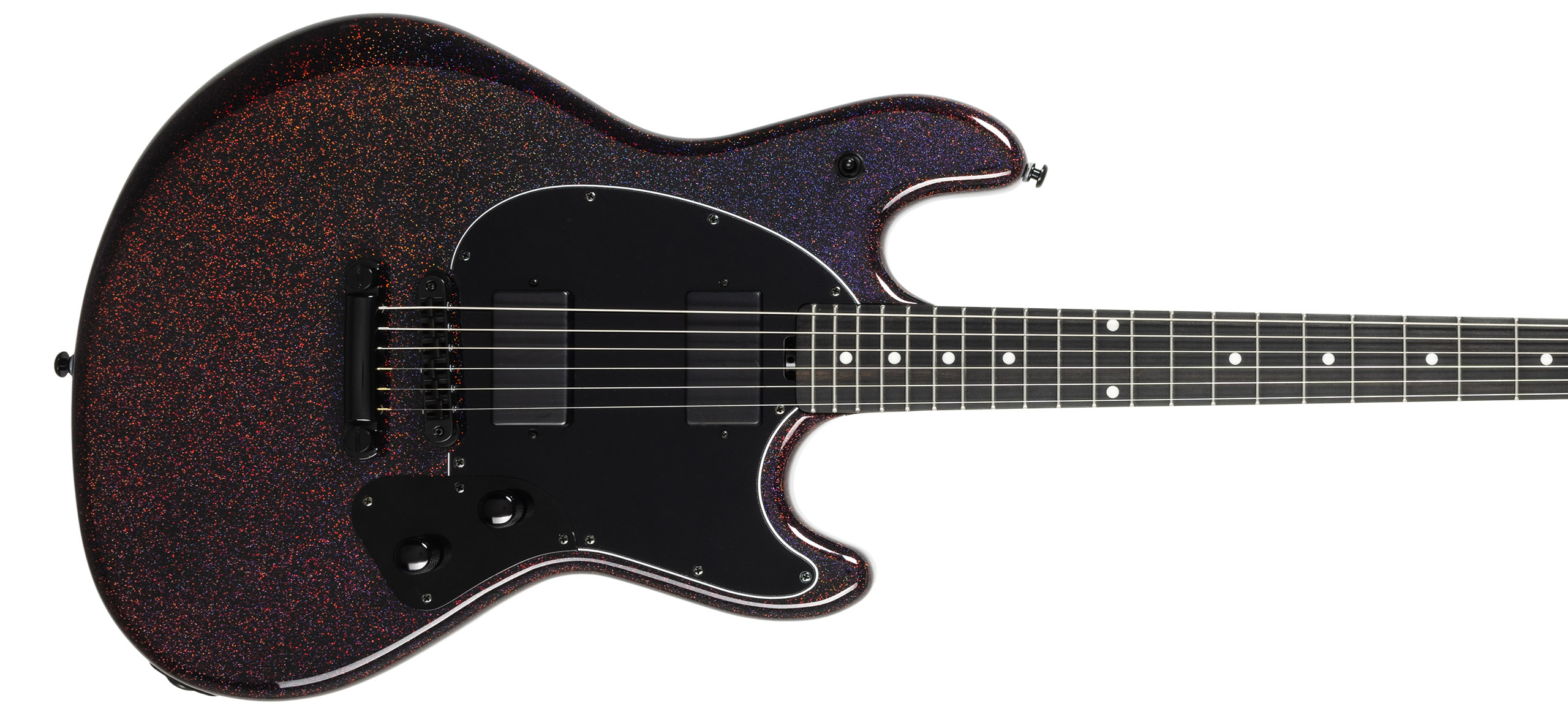

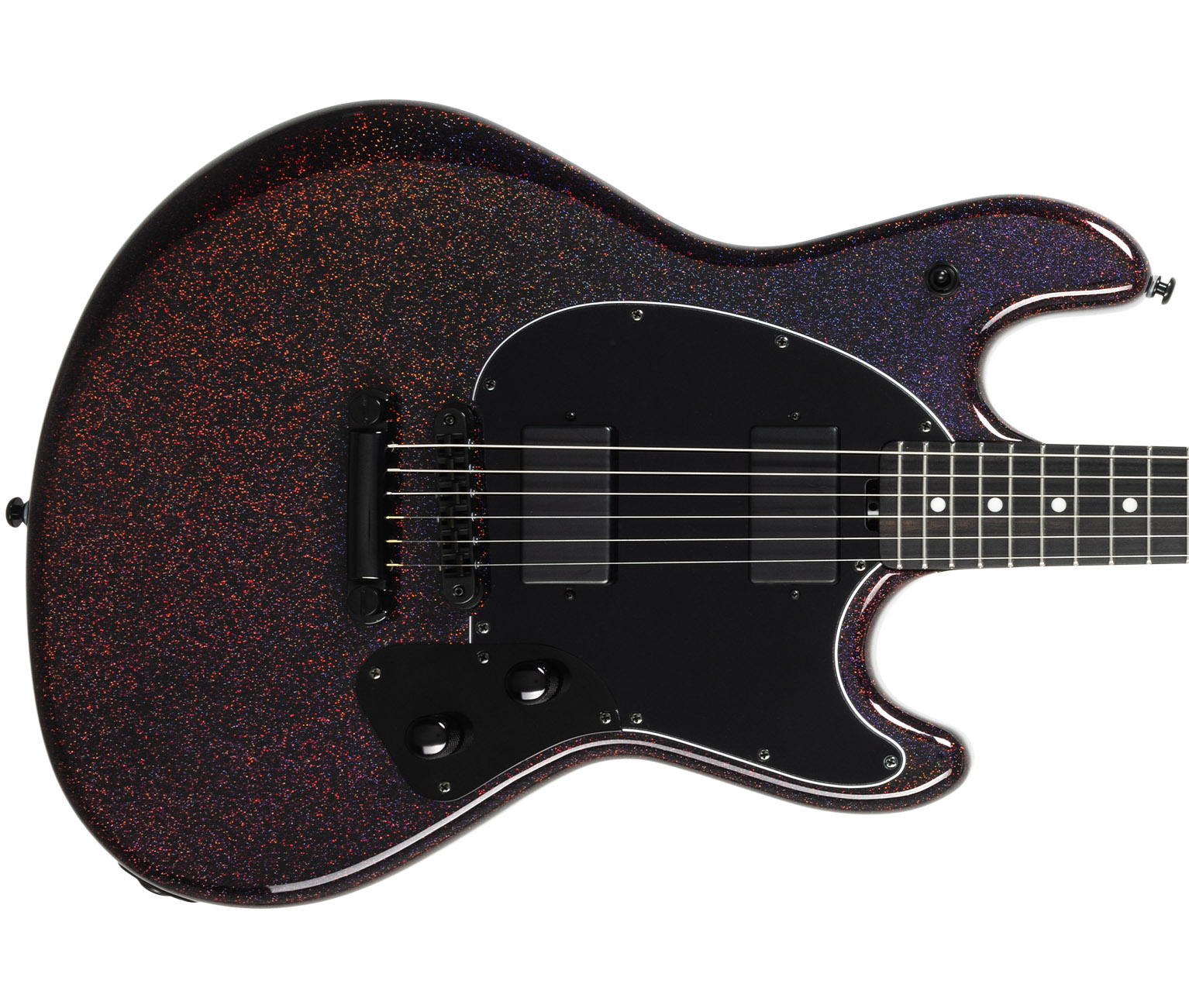

The Ernie Ball Music Man StingRay HT guitar is the newest edition to the ever-growing family of Ernie Ball Music Man instruments. Featuring the familiar shape and feel of previous StingRay guitar models, the StingRay HT showcases new custom Music Man pickup technology inspired by over a decade of guitar string research delivering an incredibly dynamic and responsive playing experience. The pickups are able to achieve an ultra-high-output, powerful low-end response while retaining a distinctively clean, clear tone and definition at lower volume levels. The StingRay HT (Heat Treated) bridge pickup utilizes patent-pending heat-treated pole pieces with a large ceramic magnet and an overwound coil that gives the pickup higher frequency harmonics and excellent touch sensitivity. The custom-wound neck humbucker also features a large ceramic magnet and has been wound specifically to pair with the StingRay's HT bridge pickup. In addition, the electronics package includes a push-push adjustable 20dB boost function and a transparent buffered output for complete tonal consistency wherever your volume control is set. This StingRay HT is outfitted with a stop tail Tune-o-Matic bridge which sets it apart from the StingRay's vintage style tremolo but shares a number of the standard specifications, including a contoured body, a roasted figured maple neck, 22 stainless frets, and Schaller locking tuners.
Brulee
Midnight Rider
Raspberry Burst
Showtime
Incorporating the principles and insights that contributed to the development of Cobalt and M-Steel Slinkys resulting in a new material-based innovation for pickups
Outperforms normal spec pickups by providing extra output and excellent touch sensitivity
HT pickups display a more powerful bass response and expansion of higher frequency harmonics

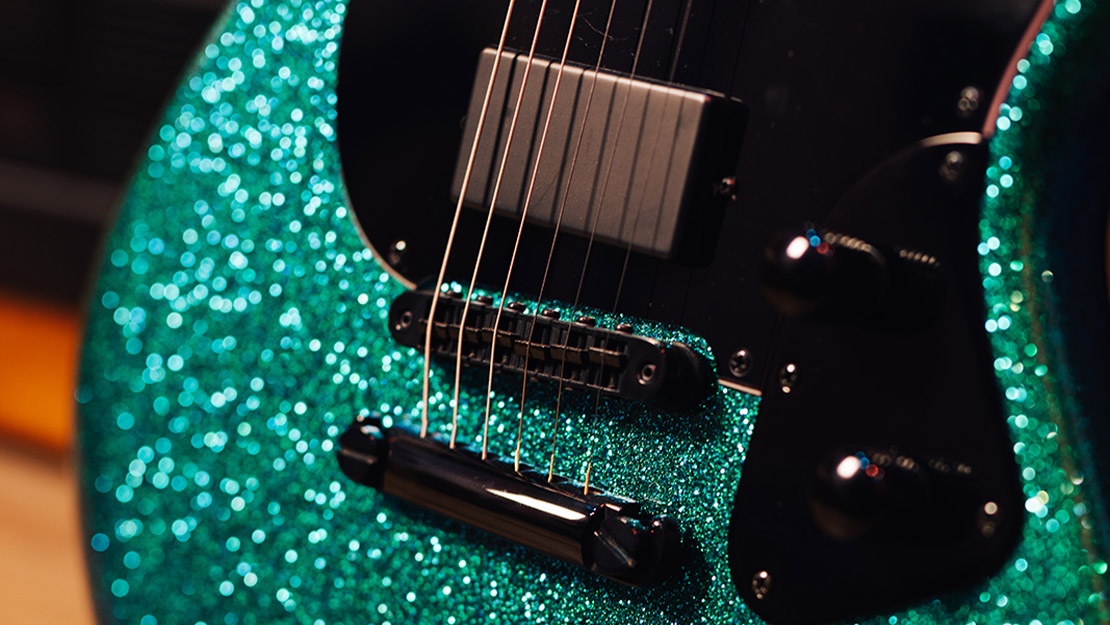

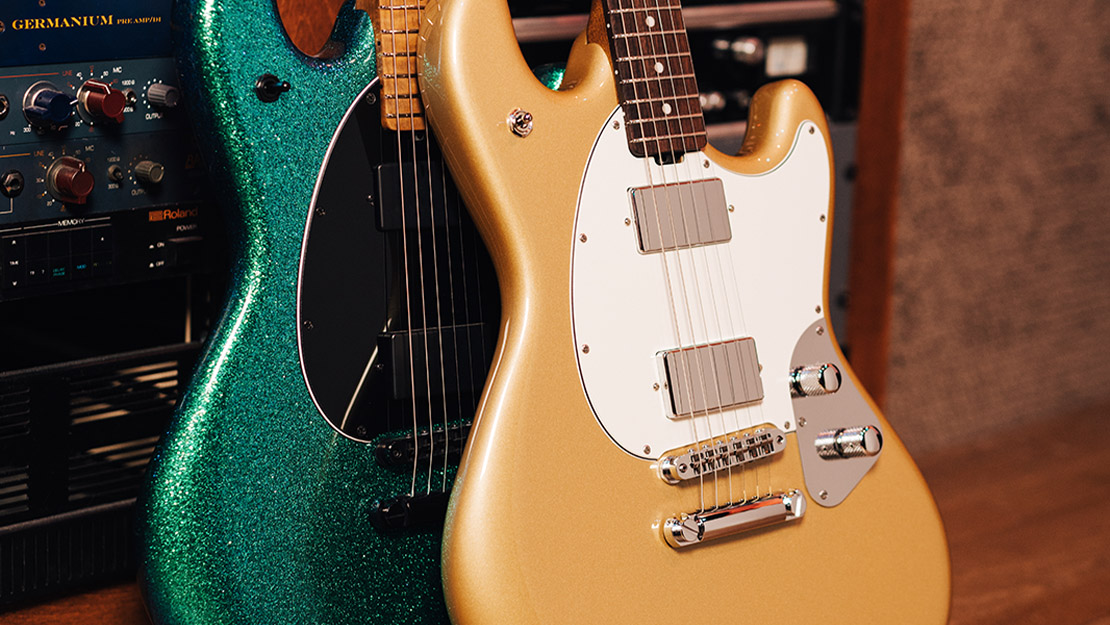

The Stingray HT (Heat Treated) bridge pickup outperforms normal spec pickups with more output, dynamic range, and excellent touch sensitivity. The pickup not only achieves ultra-high output but also garners a powerful low-end response while retaining a distinctively clean, clear tone and definition at lower volume levels.

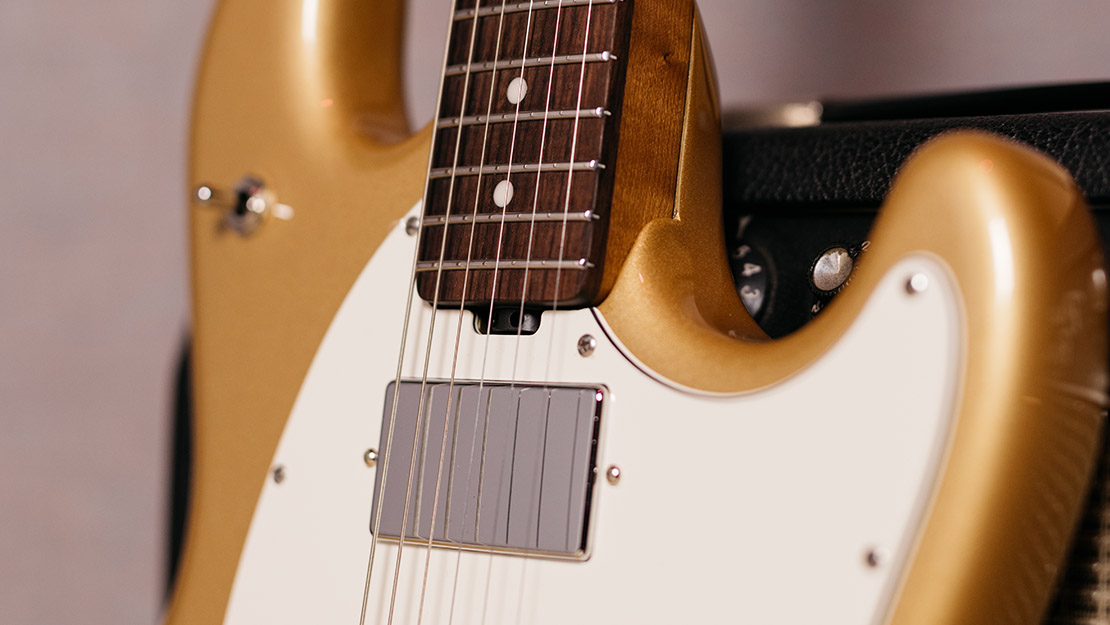

The custom-wound neck humbucker also features a large ceramic magnet and has been wound specifically to pair with the Stingray's HT bridge pickup.

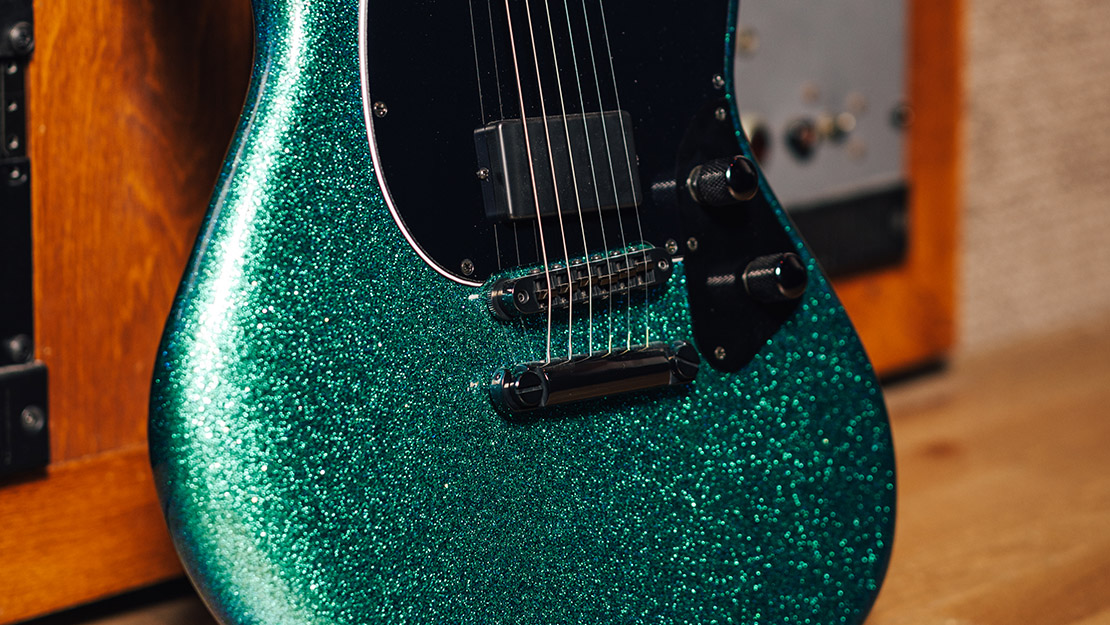

The Stingray HT preamp boost is activated by a push-push volume knob and is factory set to 12db. Via a trim pot inside the control cavity, the preamp can be adjusted up to 20db if needed for heavy rhythm parts or high octane soloing whenever the user chooses.

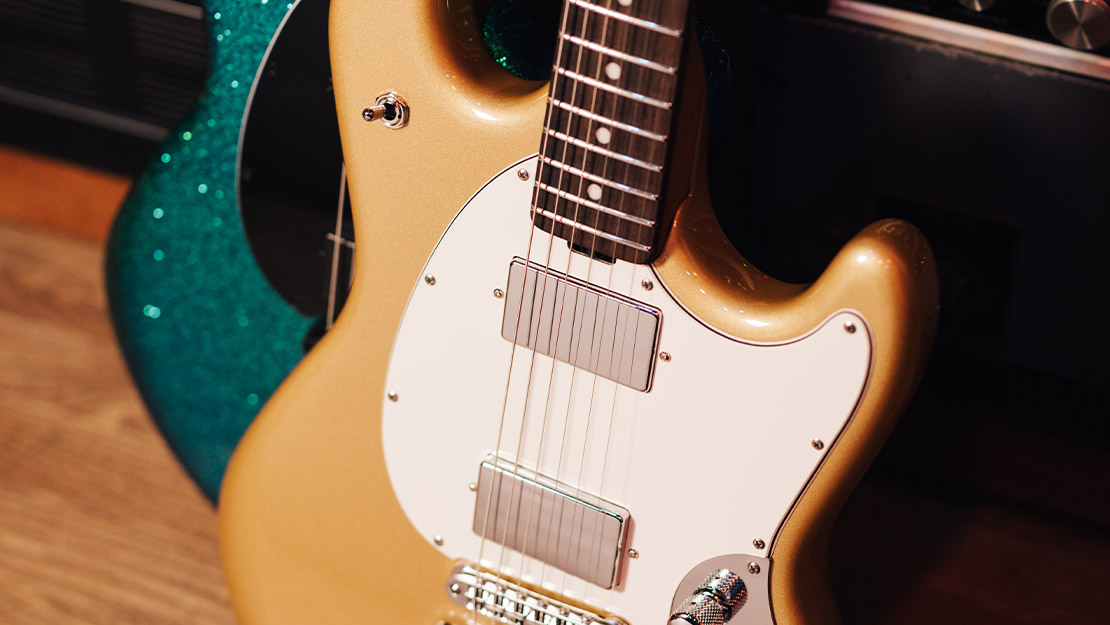

No matter where your volume control is set, the transparent buffered output preserves your signal from high-frequency loss and keeps your tone bright and strong.

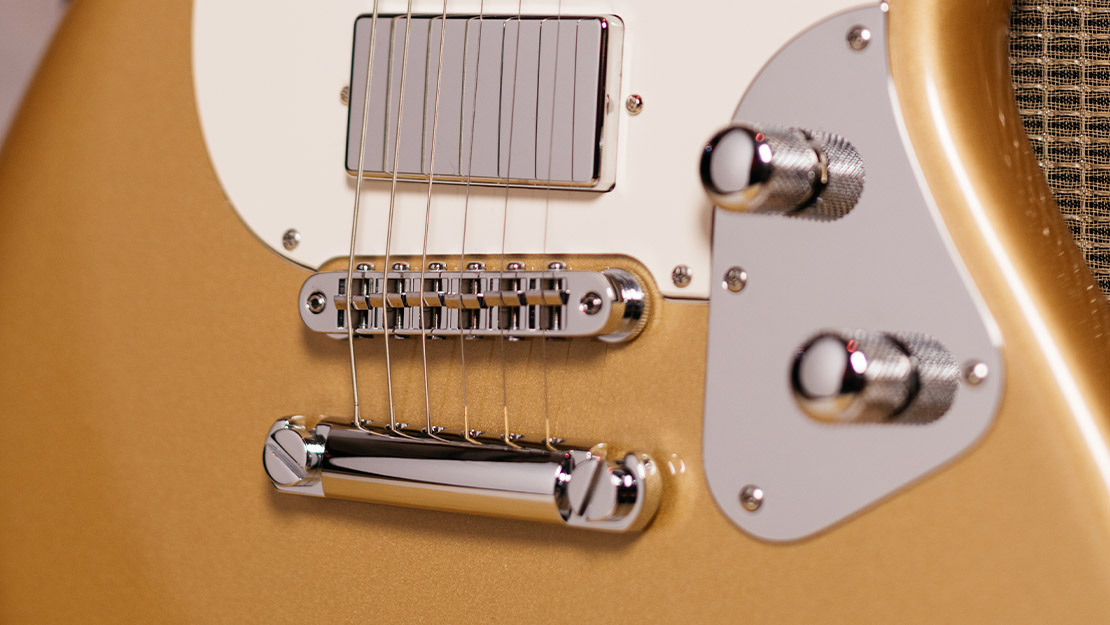

In use since the early 1950s, this popular bridge option is standard on the new Stingray HT. The Tune-o-Matic bridge is great for players who prefer a hardtail bridge option with great sustain and ease of string replacement.
| Especificaciones | StingRay HT |
|---|---|
| Modelo | StingRay HT |
| Tamaño | 14-1/16" wide, 1-5/8" thick, 39-1/4" long (35.7 cm wide, 4.1 cm thick, 99.7 cm long) |
| Tipo de madera del cuerpo | Alder |
| Tipo de acabado del cuerpo | High Gloss Polyester |
| Pickguard | Black/White/Black |
| Escala de longitud | 25.5" |
| Radio del cuello | 10" (25.4 cm) |
| Tamaño del cabezal | 6-3/8" (16.2 cm) long |
| Trastes | 22 - High Profile, Medium Width, Stainless Steel |
| Ancho de cuello | 1-5/8" (41.3 mm) at nut; 2-1/4" (56.9 mm) at last fret |
| Madera del cuello | Roasted Figured Maple |
| Diapasón | Brulee & Raspberry Burst - Figured Roasted Maple; Midnight Rider - Ebony; Showtime - Rosewood |
| Indicador de los trastes | Dot |
| Acabado del cuello | Gunstock oil and hand-rubbed special wax blend |
| Color del cuello | Natural |
| Afinador | Schaller M6-IND locking |
| Barra de refuerzo | Adjustable - no component or string removal |
| Unión del cuello | 5 bolt, sculpted neck joint |
| Blindaje electrónico | Graphite acrylic resin coated body cavity and aluminum lined pickguard |
| Controles | Volume knob with push/push switch for gain boost, tone knob, 3 way pickup selector switch. |
| Cambio | 3-way toggle pickup selector; Push/push volume pot for boost |
| Pastillas | Bridge - Music Man® HT Humbucker; Neck - Music Man® Custom Wound Neck Humbucker |
| Zurdo | No |
| Cuerdas | 10p-13p-17p-26w-36w-46w (RPS 10 Slinkys #2240) |
id => 107
iid => 107
enabled => 1
header_1 =>
header_2 =>
wiring_image => 0
created_at => 2022-08-03 11:38:15
updated_at => 2022-08-03 11:38:15
| Especificaciones | StingRay HT | |
|---|---|---|
| Model | StingRay HT | |
| Order | 0 | |
| Size | 14-1/16" wide, 1-5/8" thick, 39-1/4" long (35.7 cm wide, 4.1 cm thick, 99.7 cm long) | |
| Body Wood | Alder | |
| Body Finish | High Gloss Polyester | |
| Body Colors | ||
| Body Bindings | ||
| Bridge | ||
| Pickguard | Black/White/Black | |
| Scale Length | 25.5" | |
| Neck Radius | 10" (25.4 cm) | |
| Headstock Size | 6-3/8" (16.2 cm) long | |
| Frets | 22 - High Profile, Medium Width, Stainless Steel | |
| Neck Width | 1-5/8" (41.3 mm) at nut; 2-1/4" (56.9 mm) at last fret | |
| Neck Wood | Roasted Figured Maple | |
| Fingerboard | Brulee & Raspberry Burst - Figured Roasted Maple; Midnight Rider - Ebony; Showtime - Rosewood | |
| Fret Markers | Dot | |
| Neck Finish | Gunstock oil and hand-rubbed special wax blend | |
| Neck Colors | Natural | |
| Neck Binding | ||
| Tuning Machines | Schaller M6-IND locking | |
| Truss Rod | Adjustable - no component or string removal | |
| Neck Attachment | 5 bolt, sculpted neck joint | |
| Electronic Shielding | Graphite acrylic resin coated body cavity and aluminum lined pickguard | |
| Controls | Volume knob with push/push switch for gain boost, tone knob, 3 way pickup selector switch. | |
| Switching | 3-way toggle pickup selector; Push/push volume pot for boost | |
| Pickups | Bridge - Music Man® HT Humbucker; Neck - Music Man® Custom Wound Neck Humbucker | |
| Left Handed | No | |
| Strings | 10p-13p-17p-26w-36w-46w (RPS 10 Slinkys #2240) |
